MultiPulse PRO – High-Power CO₂ Laser for Dermatology and Dermatological Surgery
The MultiPulse PRO combines innovative CO₂ laser technology with the highest precision, opening up new possibilities in modern medicine. Designed for demanding applications, the system helps physicians achieve optimal treatment results. Thanks to its exclusive DPC technology and powerful laser source, the system enables particularly efficient, controlled, and gentle therapy.
Design Meets Performance
The MultiPulse PRO’s elegant, space-saving design was developed to meet the demands of everyday practice. With up to 60 watts of power, the system delivers maximum performance for demanding applications.
Scanner & Accessories
With numerous configuration options and versatile applications, the scanner offers maximum flexibility. The specially developed accessories are optimally tailored to different medical specialties.
360° Articulated Arm
The long articulated arm provides optimal balance between the handpieces and the scanner. The arm can be folded back for transport.
RF CO₂ Laser Source
The pulse timing of RF laser sources is faster and more stable, allowing for precise control of laser power. Additionally, the service life of an RF CO₂ tube is longer than that of conventional CO₂ lasers.
Dynamic-Pulse-Control-Technology
Thanks to DPC technology, the pulse shape can be precisely adapted to specific needs. The SP, DP, HP, and UP modes offer a wide range of ablation and thermal options for customized treatment approaches.
Modern User Interface
The high-resolution, responsive touchscreen, combined with a modern user interface, ensures particularly intuitive and convenient operation.
State-of-the-art technology combined with high performance
The MultiPulse PRO combines maximum performance with a versatile selection of accessories, offering the ideal solution for professional users. The system enables customized treatment plans that are precisely tailored to the needs of each individual patient.
nm
Watts
Scanner
Emission modes
DPC-Technology for maximum flexibility
The exclusive Dynamic-Pulse-Control technology enables maximum flexibility in pulse shape: UP, SP, DP, HP, and CW modes allow for the perfect adaptation of ablation and thermal denaturation effects to the patient’s needs at all times.
SP-MODE
A gentle ablation peak is followed by a heating phase. The epidermis is ablated while the underlying tissue is heated. Ideal for indications in the papillary dermis.
DP-MODE
High ablation peak with a selectable heating phase. The ablation and heating zones form a wedge-shaped geometry. Ideal for targeted tissue regeneration, e.g., for atrophic scars and periorbital wrinkles.
HP-MODE
Highest ablation peak and shortest pulse for particularly precise ablation. Depending on the power setting, it acts either superficially or deeply. Ideal for scars, wrinkles without laxity, and darker skin types.
UP-MODE
High ablation peak and short pulse with high frequency for superficial ablation with a thermal effect. Ideal for rhinophyma treatment and blepharoplasty.
Smart Technology for Optimal Results
The intelligent scanner technology ensures precise control of penetration depth and thermal effect, thereby increasing the safety and effectiveness of the treatment. Three scan modes are available to accommodate different needs. The result is gentler treatments, faster recovery times, and greater patient comfort.
SmartStack
For true and precise control of the vaporization depth, you can choose from 5 SmartStack levels. As the SmartStack level increases, a progressive increase in the shrinkage effect is achieved, making the treatment more effective and safer.
SmartTrack
You can choose between Normal, Interlaced, or SmartTrack scan modes. SmartTrack is the algorithm specifically designed to optimize the scan path and minimize the local temperature rise.
A Wide Range of Accessories and a multipurpose scanner
The system features various handpieces and a multipurpose scanner. These are optimized in terms of shape, weight, ease of connection, and size to ensure optimal handling.

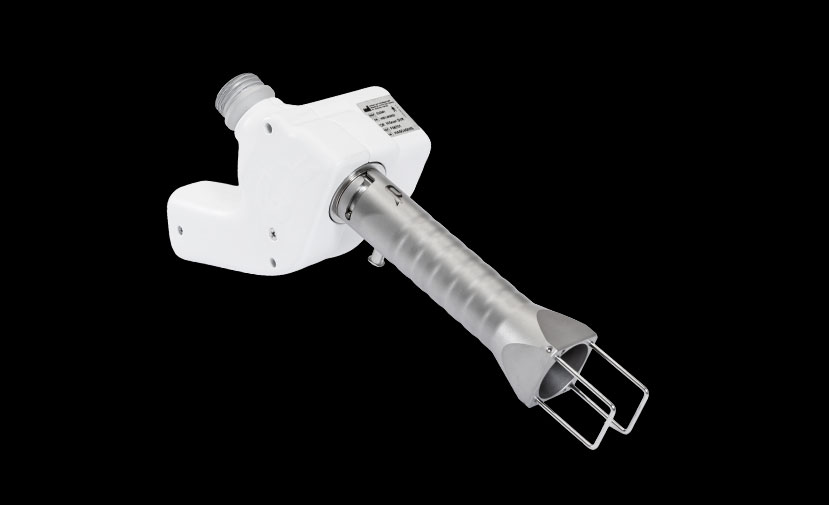

HiScan SVR
The HiScan SVR stands for “Skin Versatility Resurfacing” and is a scanner designed for a wide range of applications. Thanks to the Frax Terminal SVR attachment, it offers maximum flexibility, precision and ease of use.
Handpieces
The various optics and spacers allow for optimal adaptation to the treatment and desired results. All handpieces are made of high-quality materials and can be easily replaced, cleaned, and sterilized.
Optics
The various optics allow for a spot size ranging from 0.125 to 2 mm and optimal adaptation to the doctor’s needs.
Spacers
The spacers are designed for various treatments, are easy to change, and are sterilizable.
Treatments
The system features a modern design and the latest laser technology, and can be used for the following applications.
Skin resurfacing
Skin rejuvenation
Scar treatment
Nevi cell nevus
© Dr. Karolina Kykalova,
Prague, Czech Republic
Rhinophyma
© Dr. Andreas Ott, Rehau, Germany
Actinic cheilitis
© Prof. Dr. Peter Arne Gerber, Düsseldorf, Germany
Accident scar
© Dr. Andreas Ott, Rehau, Germany
MultiPulse PRO Design
The MultiPulse PRO combines powerful technology with intelligent ergonomics and a space-saving system design. Its balanced proportions and elegant design create a high-quality appearance that exudes professionalism and innovation. The result is a system that not only operates efficiently and saves valuable space, but also meets the highest aesthetic standards.
JenaSurgical
The MultiPulse PRO combines innovative technology, high performance, and a comprehensive range of accessories. This allows users to benefit from first-class performance in ENT microsurgery, general surgery, and colposcopic gynecology.
